| Parts |

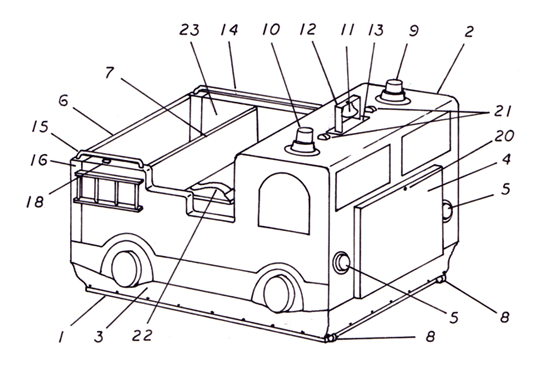

Ride Body Diagram 1 |
 |
| Parts List - Ride exterior body and shell comprising |
| 1 |
Base |
3SFLF010001 |
| 2 |
Body |
1DSBOD |
| 3 |
Boot |
62TRSBOOT |
| 4 |
Grill |
48DSGR |
| 5 |
Headlight |
44HC95-4001-1811D |
| 6 |
Tailgate |
6SFRD010001 |
| 7 |
Seat |
10SFBS010001 |
| 8 |
Roller Wheels |
25MM2781T71 |
| 9 |
Blue Flasher Beacon |
45HC95-0115-1213 |
| 10 |
Red Flasher Beacon |
46HC95-0115-1013 |
| 11 |
Bell |
31BBA2060 |
| 12 |
Bell Mount |
29SFBM010001 |
| 13 |
Bell Support Plate |
30SFBM000002 |
| 14 |
Long Handicap Grab Rail |
40MM2823K47 |
| 15 |
Short Handicap Grab Rail |
41MM2823K33 |
| 16 |
Tailgate Frame |
5SFR0010001 |
| 17 |
Tailgate Rubber Trim |
70AR6375B3X1/8A-GRGB |
| 18 |
Tailgate Switch |
58GG6X286 |
| 19 |
Lift Support Shocks |
42ARAH8720 |
| 20 |
Grill Lock Cam |
78HC30-3803-40 |
| 21 |
Amber Hood Light |
43TEG106Y |
| 22 |
Seat Belt |
69TRSSB |
| 23 |
Side Panel/Left |
76DSLHSP |
| 24 |
Side Panel/Right |
75DSRHSP |
| 25 |
Control Unit |
60SECU |
| 26 |
Steering Wheel |
36HC50-1006-00 |
| 27 |
Steering Wheel Decal Plate |
82SFSWDP |
|

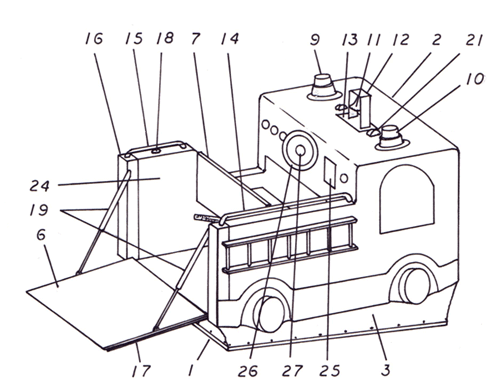

| Ride Body Diagram 2 |
 |
| Parts List - Ride exterior body and shell comprising |
| 1 |
Base |
3SFLF010001 |
| 2 |
Body |
1DSBOD |
| 3 |
Boot |
62TRSBOOT |
| 4 |
Grill |
48DSGR |
| 5 |
Headlight |
44HC95-4001-1811D |
| 6 |
Tailgate |
6SFRD010001 |
| 7 |
Seat |
10SFBS010001 |
| 8 |
Roller Wheels |
25MM2781T71 |
| 9 |
Blue Flasher Beacon |
45HC95-0115-1213 |
| 10 |
Red Flasher Beacon |
46HC95-0115-1013 |
| 11 |
Bell |
31BBA2060 |
| 12 |
Bell Mount |
29SFBM010001 |
| 13 |
Bell Support Plate |
30SFBM000002 |
| 14 |
Long Handicap Grab Rail |
40MM2823K47 |
| 15 |
Short Handicap Grab Rail |
41MM2823K33 |
| 16 |
Tailgate Frame |
5SFR0010001 |
| 17 |
Tailgate Rubber Trim |
70AR6375B3X1/8A-GRGB |
| 18 |
Tailgate Switch |
58GG6X286 |
| 19 |
Lift Support Shocks |
42ARAH8720 |
| 20 |
Grill Lock Cam |
78HC30-3803-40 |
| 21 |
Amber Hood Light |
43TEG106Y |
| 22 |
Seat Belt |
69TRSSB |
| 23 |
Side Panel/Left |
76DSLHSP |
| 24 |
Side Panel/Right |
75DSRHSP |
| 25 |
Control Unit |
60SECU |
| 26 |
Steering Wheel |
36HC50-1006-00 |
| 27 |
Steering Wheel Decal Plate |
82SFSWDP |
|
| Non-illustrated Part Numbers |
| Base Bearing |
24BDUCP205W-16 |
| Bushing |
23GG(1)1X868 |
| Button Light |
55HC54-0004-11 |
| Lift Latch |
26ARCCN-5121BK-8 |
| Non-skid Strip |
65GG(1)3JW42 |
| Power Cord |
68GG(1)W926 |
| Power Cord Heads |
84GG6A665 |
| Power Supply |
59SEPS |
| Steering Wheel Mount Base |
32SFSW010001 |
| Steering Wheel Shaft |
34SFSW010002 |
| Steering Wheel Support Plate |
33SFSW000005 |
| Steering Wheel Washer |
35SFSW000008 |
| Tailgate Beeper |
67RS273-071 |
| Tailgate Insert |
7SFRD000001 |
| Tailgate Latch |
51AREMC 3-4820 SS |
|

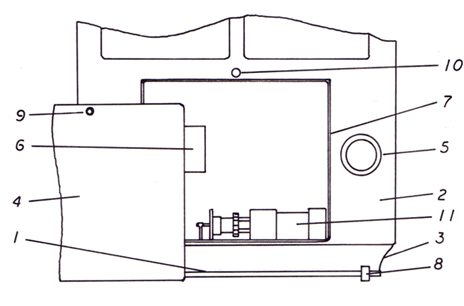

| Grill and Interior Diagram |
 |
| Parts List - Grill and interior cavity comprising |
| 1 |
Base |
3SFLF010001 |
| 2 |
Body |
1DSBOD |
| 3 |
Boot |
62TRSBOOT |
| 4 |
Grill |
48DSGR |
| 5 |
Headlight |
44HC95-4001-1811D |
| 6 |
Coin Box |
27HC42-0607-00 |
| 7 |
Grill Rubber Trim |
71ARTL 1100 B7X1/8 |
| 8 |
Roller Wheels |
25MM2781T71 |
| 9 |
Grill Lock Cam |
78HC30-3803-40 |
| 10 |
Grill Lock Tube |
49HC30-2207-15102 |
| 11 |
Electric Motor |
16GG(1)1L140 |
|
| Non-illustrated Part Numbers |
| Coin Mechanism |
47HC40-0347-00 |
| Coin Meter |
74HC42-0614-00 |
| Circuit Board Mount |
80SFAP000001 |
| Grill Lock Key |
77HC30-2210-15102 |
| Grill Mount Bottom Bar |
38SFFG000001 |
| Grill Mount Top Bar |
37SFFG010001 |
| Grill Support Lip |
39SFFG000002 |
| Fuse Holder |
86GG1DK82 |
| Relay |
85GG(1)1A486 |
| Relay Terminal Block |
61GG(1)5X853 |
| Wire Terminals |
87SSWAL10-140 |
| Speaker |
28HC50-9007-00 |
|

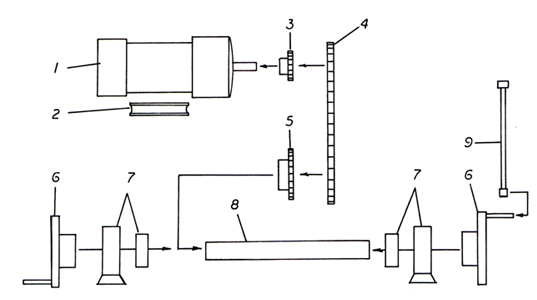

| Motor Rocker Assembly Diagram |
 |
| Parts List - Motor and rocker assembly comprising |
| 1 |
Electric Motor |
16GG(1)6Z401A |
| 2 |
Motor Mount |
11SFGM010001 |
| 3 |
Small Sprocket |
17GG(1)1L106 |
| 4 |
Roller Chain |
18GG(1)2W093 |
| 5 |
Large Sprocket |
14GG(1)1L140 |
| 6 |
Cam |
12SFGM010002 |
| 7 |
Cam Bearing and Mount |
13BDUCP204-12 |
| 8 |
Camshaft |
15SFCAM |
| 9 |
Rocker Arm |
22BRUBM42-0623-C |
|
| Non-illustrated Part Numbers |
| Knuckle (brass nut) |
20BRBHEIM |
| Knuckle (steel nut) |
21BRBHEIM |
| Master Link |
19GG(1)5X293 |
| Motor Cowling |
2DSMC |
| Rocker Frame |
4SFUB010001 |
|

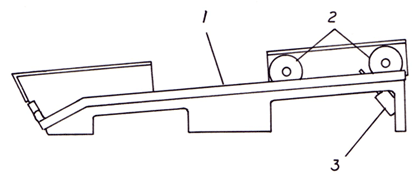

| Seat Wheel Rail Diagram |
 |
| Parts List - Seat wheel rail comprising |
| 1 |
Right Wheel Track |
8SFBS010003-R |
| 2 |
Seat Wheels |
52MM2315T515 |
| 3 |
Solenoid |
53HC51-0305-00 |
|
| Non-illustrated Part Numbers |
| Left Wheel Track |
9SFBS010005-L |
| Solenoid Springs |
79MM9654K101 |
| Track Brushes |
66MM1130A53 |
| Wheel Stop Jamb |
54SFWS010005 |
|
