Settings |

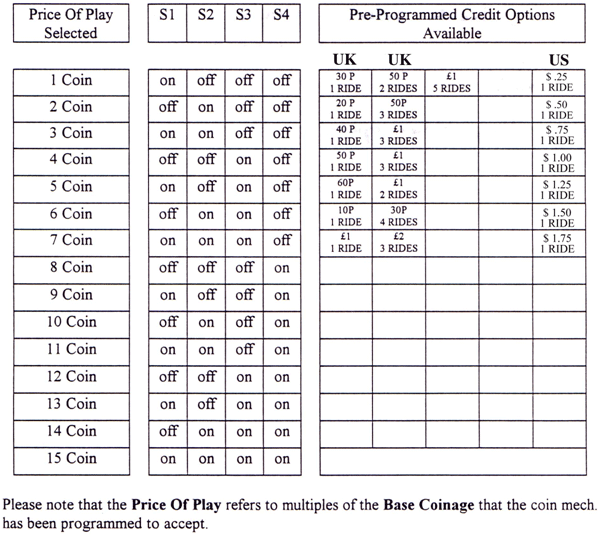

| The price of play mechanism is the SW1 switch which is accessed in this procedure and its general configuration is further illustrated in the figure below. |
SW1 Diagram |
 |

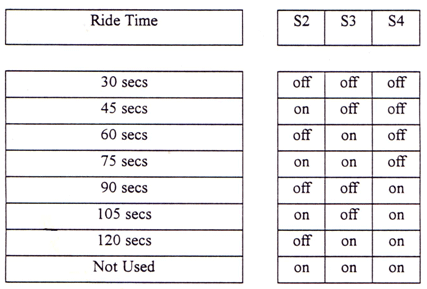

The time control mechanism is accessed by the removal of the grill as described above and can be adjusted as to ride time according to the switch setting as illustrated below. |
|
| SW2 Diagram |
 |
| Such time adjustments should be carried out by a technician who is familiar with such devices and capable of understanding and following these switch diagrams. |
| The mechanism which is used to control the volume of the Access Kiddie Ride Unit’s sound devices is also contained within the control unit. |
| The volume control mechanism is accessed by the removal of the grill as described above and can be adjusted by a technician in a similar manner as described above. |
| The control unit also manages the Access Kiddie Ride Unit’s remaining related features such as the attracting soundtrack and lighting sequences which are accessed and maintained in the same fashion as described for the previous devices. |

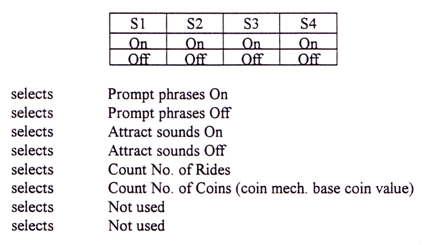

| The following diagram illustrates the general configuration of the SW3 switch which controls the Access Kiddie Ride Unit’s attraction sounds and other ancillary functions. |
| SW3 Diagram |
 |
